USR G808 V2 Cellular Wireless Routers with 5 Ethernet Ports
$199.00 USD
Couldn't load pickup availability
Cellular wireless routers USR-G800 V2 with MIPS kernel. USR-G800 V2 support FLASH-128Mbits, DDR2-1Gbits.
It has two WIFI antenna and two 4G antenna to keep the signal stable and coverage wide.
Cellular wireless routers USR-G800 V2 support data transmission between RS232 to 4G. 10.100M Ethernet port which allows the customers to deal with various industrial scenarios and easily connect to the Internet.
It has two WIFI antenna and two 4G antenna to keep the signal stable and coverage wide.
Cellular wireless routers USR-G800 V2 support data transmission between RS232 to 4G. 10.100M Ethernet port which allows the customers to deal with various industrial scenarios and easily connect to the Internet.

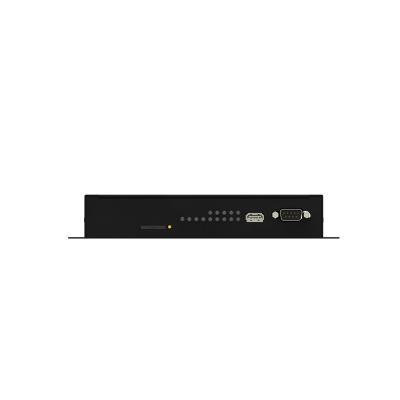

4G Card Slot: Self-locking card slot. Usim card, APN card, and IoT card can be used in Cellular wireless routers USR-G800 V2. It supports APN private network setting. Priority network can be set when Ethernet and 4G are connected at the same time.
RS232 Serial Port: Data transmission between RS232 and Ethernet. Cellular wireless routers USR-G800 V2 can work as TCP Server/TCP Client/UDP Server/UDP Client.
Indicator Light: There are 14 LED lights to show the status of LAN, WAN, 4G network, WiFi and so on.
RS232 Serial Port: Data transmission between RS232 and Ethernet. Cellular wireless routers USR-G800 V2 can work as TCP Server/TCP Client/UDP Server/UDP Client.
Indicator Light: There are 14 LED lights to show the status of LAN, WAN, 4G network, WiFi and so on.

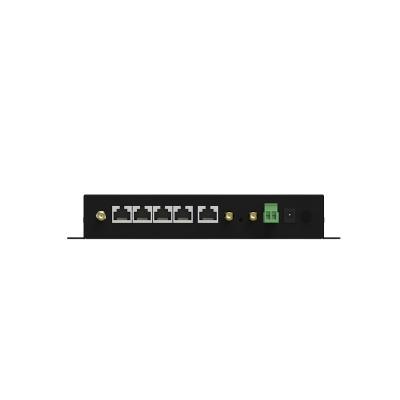

Cellular wireless routers with 5 Ethernet Ports:
1*WAN Port: support DHCP, static IP, ADSL(PPPoE) dial, VPN.
4*LAN Port: support DHCP and static IP.
Power: DC9~36V supply power and terminal supply power.
Reload: One key to restore factory Settings, do not worry about setting errors.
1*WAN Port: support DHCP, static IP, ADSL(PPPoE) dial, VPN.
4*LAN Port: support DHCP and static IP.
Power: DC9~36V supply power and terminal supply power.
Reload: One key to restore factory Settings, do not worry about setting errors.
Both WAN port and LAN port supports DHCP function(Enabled by default ).
All network device accessing to LAN port can get IP address automatic.
All network device accessing to LAN port can get IP address automatic.
VPN virtual private network
Cellular wireless routers USR-G800 V2 can establish a virtual private network on the public network for encrypted communication.
This allows mobile employees, remote employees and branch office workers to
connect to enterprise networks using locally available high-speed broadband networks, while VPNS provide a high level of security and protect data from prying eyes using advanced encryption and identity protocols.
This allows mobile employees, remote employees and branch office workers to
connect to enterprise networks using locally available high-speed broadband networks, while VPNS provide a high level of security and protect data from prying eyes using advanced encryption and identity protocols.
Cellular wireless routers G800 V2 support NTP. Default open NTP client, configure the NTP server address sometimes.
Cellular wireless routers USR-G800 V2 support port mapping from network port to intranet port.
Cellular wireless routers USR-G800 V2 support port mapping from network port to intranet port.
USR-G800 V2 provides static router tables.
The static router table can be set manually to specify the connection path of the fixed IP address for LAN port and WAN port of the router to ensure the convenience of operation.
USR-G800 V2 supports several parameter management methods like WEB、SSH, support upgrade in the web.
Provide parameter backup and import，System local log and remote log send and other functions.
USR-G800 V2 supports several parameter management methods like WEB、SSH, support upgrade in the web.
Provide parameter backup and import，System local log and remote log send and other functions.
Cellular wireless routers G800 V2 provide SYS diary and remote diary sent to remote LOG server to monitor the network.
USR-G800 V2 uses a high-performance MIPS kernel with a metal shell protection rating of IP30.
It supports terminal-supply power, the working voltage is 9~36V and supports anti-power reversal, anti-surge protection, anti-static and so on.
It supports terminal-supply power, the working voltage is 9~36V and supports anti-power reversal, anti-surge protection, anti-static and so on.
USR-G800 V2 has excellent security performance and provides firewall protection, which improves the
security of network and reducing risks.
security of network and reducing risks.
Take mine safety monitoring as an example. The mine monitoring sensor equipment is connected with the modem, and the router is connected with the camera and other networking equipment to transmit the collected data to the management monitoring platform in real-time, so as to quickly carry out fault investigation, ensure safe construction and avoid illegal operation by operators.
Hardware Dimensions
Hardware Dimensions
| Wired Ethernet Port | |
| WAN port | WAN *1 |
| LAN port | LAN *4 |
| Both LAN port and WAN port with a rate of 10/100Mbps,Auto MDI/MDIX | |
| WIFI | |
| WIFI Network | Support 802.11b/g/n |
| Antenna | WIFI antenna *2 |
| Specification | |
| Interface | Mini PCI-E 52PIN |
| TD-LTE | 3GPP R9: download rate of 150 Mbps; Upload rate of 50 Mbps |
| FDD-LTE | 3GPP R9: download rate of 150 Mbps; Upload rate of 50 Mbps |
| WCDMA | HSPA+: download rate of 21 Mbps; upload rate of 5.76 Mbps |
| TD-SCDMA | 3GPP R9: download rate of 2.8 Mbps; upload rate of 2.2 Mbps |
| GSM/GPRS/EDGE | Download rate of 384 kbps; upload rate of 128 kbps |
| Frequency Band | |
| TD-LTE | Band 38/39/40/41 |
| FDD-LTE | Band 1/3 |
| WCDMA | Band 1/8 |
| TD-SCDMA | Band 34/39 |
| GSM/GPRS/EDGE | Band 3/8 |
| SIM card&Antenna | |
| SIM/USIM Card | Standard 6 pin SIM card, 3V/1.8V SIM card |
| Antenna | 3/4G full-frequency antenna * 2 |
| Key | |
| Reload | A key to restore factory settings |
| Indicator light | |
| Status indicator light | Power,WIFI,4G,WAN*1,LAN*4 |
| Serial | |
| RS232 | DB9 pin male; Data transparent transmission between RS232 and 4G network |
| Temperature | |
| Working Temp | -20°C~ +70°C |
| Storage Temp | -40°C~ +75°C |
| Humidity | |
| Working Humidity | 10%~90% |
| Storage Humidity | 5%~90% |
| Power Supply | |
| Working Voltage | DC9~36V |
| Working Current | Average: 170mA; Max: 289mA (DC12V) |
