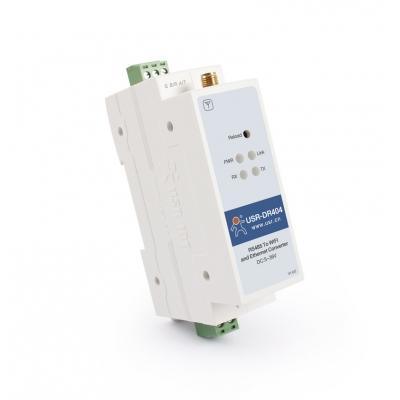

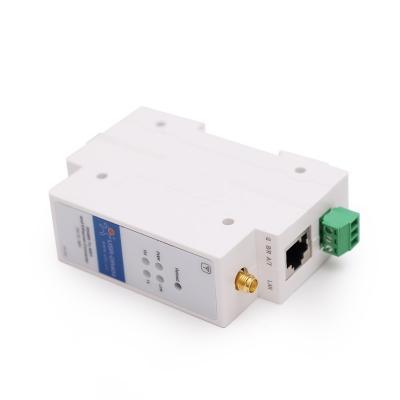

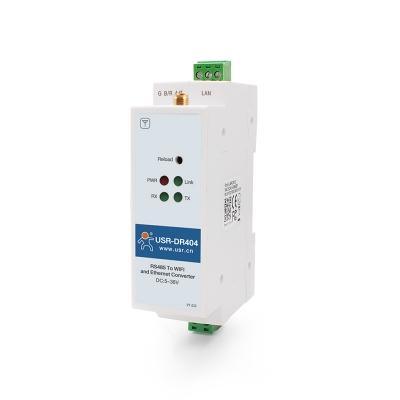

USR DR404 Din Rail RS485 to WiFi Converters
$41.00 USD
Couldn't load pickup availability
DR SERIES
DR（Din-Rail）series products are our newly launched devices which include serial device server, 4G cellular modem, 4G industrial router and other product models, Equipped with 35mm din-rail clasp, this products are more suitable for device connecting internet.
Based on wifi network:USR-DR404
Based on wifi network:USR-DR404
Product Detail
PC + ABS material, light and easy to carry, low cost, high performance, V0 class flame retardant rating, to ensure the safety
Din-rail Installation
Compact size, less space, wide application, Guide buckle, flexible and easy to install, less management and maintenance, high cost performance.
Fundamental Function
Bidirectional Transparent transmission between RS485 and Wi-Fi / Ethernet
Function Structure
Work Mode
Transparent Transmission Mode
Data is transmitted transparently between serial port and Wi-Fi / Ethernet via DR404, enabling data transfer between serial port device and network device
Serial Command Mode
The user sends data to the server according to the protocoland can send data to different servers without restarting.
httpsD Client Mode
After the user completes the https header with an AT instruction or web page setup, DR404 can pass data to or from the https server.
AT Command Mode
Users can query the current status of DR404 or set relevant parameters by sending AT instructions
Quick Networking Protocol USR-LINK
Mobile phone connect to the AP of DR404,you can directly
set the specified AP to which DR404 connects by querying
surrounding AP’s SSID list through USR-LINK, which is
convenient and fast. You can quickly connect to the Internet
without operating DR404.
set the specified AP to which DR404 connects by querying
surrounding AP’s SSID list through USR-LINK, which is
convenient and fast. You can quickly connect to the Internet
without operating DR404.
Custom Registration Package, Heartbeat Package
The registry package is used for easy device
identification from the server.
identification from the server.
Hardware Protection
ESD 4 level Electrostatic Discharge Immunity, 3 level Surge Immunity,
EFT 3 level Electrical Fast Transient / Burst Immunity.
EFT 3 level Electrical Fast Transient / Burst Immunity.
Packing list
Packing list one serial device server and Wi-Fi antenna, if you need power adapter, contact our sales.
Application Case
Application Case
Smart Factory Data Collection and Transmission
Compact wireless device server DR404 is connected to the serial port device in the factory, and the device operation data is uploaded to the local monitoring platform or USR cloud platform in real time. Through the monitoring platform, the staff can dynamically understand the operation of the monitored equipment.
Compact wireless device server DR404 is connected to the serial port device in the factory, and the device operation data is uploaded to the local monitoring platform or USR cloud platform in real time. Through the monitoring platform, the staff can dynamically understand the operation of the monitored equipment.
Textile Machinery Factory Data Acquisition and Transmission
Compact size, less space. Equipped with DIN- rail for easy mounted, The terminal data of the PLC can be quickly uploaded to the monitoring platform, so that the staff can understand the PLC work in real time.
Ethernet | |
Port Number | 1 Ethernet Ports: 1 x WAN/LAN |
Buffer | RX/TX: Max 4K bytes |
Protection | 2KV Electromagnetic isolation for Ethernet port |
Speed Rate | 10/100Mbps, MDI/MDIX |
Wi-Fi | |
Certificate | FCC/CE |
WiFi | 802.11 b/g/n |
FrequencyRange | 2.412GHz-2.484GHz |
TransmitPower | 802.11b: +19dBm(Max.@11Mbps) 802.11g: +18dBm(Max.@54Mbps) 802.11n: +17dBm(Max.@HT20,MCS7) +17dBm(Max.@HT40,MCS7) |
User can configure power | |
ReceiveSensitivity | 802.11b: -89dBm(@11Mbps) 802.11g: -81dBm(@54Mbps) 802.11n: -73dBm(@HT20,MCS7) -71dBm(@HT40,MCS7) |
Hardware | |
InterfaceStandard | RS485:300～230.4Kbps |
485 interface (anti surge, anti thunder, overcurrent protection) | |
Input Voltage | DC5～36V |
Operating Temp | -40℃～85℃ |
StorageTemp | -40℃～125℃ |
Size | 109.66*28*64.71mm(L*W*H) |
Software | |
Network Mode | Station/AP/AP+Station |
Security | WPA-PSK/WPA2-PSK |
Encryption | TKIP/AES |
Work Mode | Transparent transmission/Serial command/ https Client/Modbus TCP<=>Modbus RTU |
SettingCommand | AT+ command |
Networking Protocol | TCP/UDP/ARP/ICMP/DHCP/DNS/https |
Max Client Numberin TCP Server Mode | 24 |
Configuration | Web server＋AT command |
Customer application software | Support customize application software |
